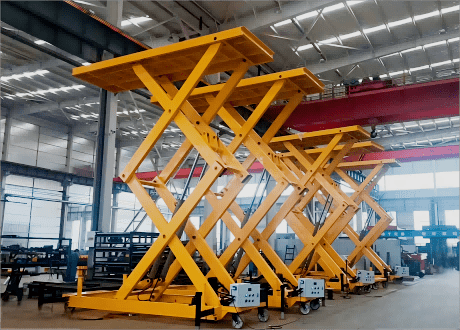

15T Compact Hydraulic Scissor Lift Table with Electric Wheels

The 15T Compact Hydraulic Scissor Lift Table with Electric Wheels is designed for unloading heavy equipment, efficiently bridging height differences between vehicles and unloading docks. It offers adjustable height between 0.85m and 2m, with precise stop-and-go control. The electric wheels are powered by a 48V 1500W drive system, ensuring smooth mobility. For safety, the system ensures that the electric wheels are deactivated when the lift platform is operating, and vice versa. The lift speed ranges between 2-3m/min, providing efficient and controlled lifting for heavy-duty applications.

Specification

Model	SJG15-2.0	Range
Loading Capacity	15,000kg	As required
Platform Dimension	1800*1500mm	As required
Travel Height	1150mm	As required
Self Height	850mm	As required
Electric Wheels	48V/1500W Drive Wheels	As required
Lifting Speed	2-3m/min	As required
Actuation	Hydraulic	Hydraulic/Mechanical
Battery	48V/ Working Time ≥3h	As required
Application	Transportation

Features

High Load Capacity: Designed to handle heavy-duty tasks, this lift table can support up to 15 tons, making it ideal for unloading heavy equipment and machinery, addressing the height difference between vehicles and unloading docks.
Adjustable Height Range: The platform offers a flexible height adjustment range from 0.85m to 2m, allowing operators to easily and precisely match the lift table height to the unloading dock or vehicle. The height control features a stop-and-go function, ensuring smooth and controlled elevation.
Compact Table Size: Despite its high capacity, the platform has a compact footprint, with a surface area of 1800mm x 1500mm. This space-saving design makes it suitable for environments with limited space while still providing the necessary functionality for heavy-duty operations.
Electric Wheel Drive System: The lift table is equipped with 48V 1500W electric drive wheels, which enable smooth movement of the table for positioning before lifting. This motorized system ensures efficient mobility when relocating the platform.
Safety Interlock Mechanism: For added safety, the system is designed with an interlock feature where the electric wheels deactivate automatically when the lift platform is in operation. Similarly, the lift platform deactivates when the electric wheels are engaged, ensuring that both systems do not function simultaneously, preventing accidents.
Lifting Speed: The lift table operates at a lifting speed of 2-3 meters per minute, providing efficient vertical movement for rapid unloading and loading operations.
