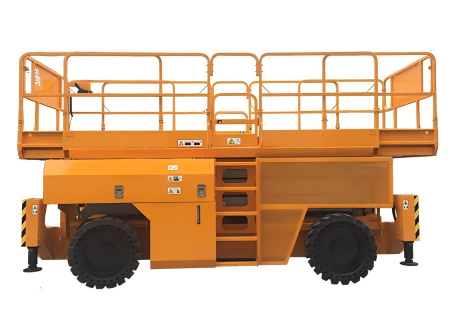

G-QZX-14 14-meter Self-Propelled Electric Scissor Lift

The 14-meter Self-Propelled Electric Scissor Lift offers a platform height of 14 meters, providing a working height of approximately 16 meters. Ideal for both indoor and outdoor tasks such as maintenance, installations, and construction work, it is powered by a rechargeable battery, ensuring quiet and emission-free operation. With a load capacity of 230 kg, it features self-propelled mobility for easy movement while elevated, along with safety systems like tilt protection, pit protection, and an explosion-proof system, ensuring safe and efficient operation at height.
Contact Us Now
Specification
Parameters
Model

G-QZX-14

Specifications

Max. Working height

16m

Max. Platform height

14m

Platform Length

2.27m

Platform Extension Length

0.9m

Platform Width

1.12m

Machine Height

2.62m

Machine Height – Rails Folded

2.06m

Machine Length

2.85m

Machine Width

1.31m

Wheelbase

2.28m

Tire

φ381*127

Productivity

Max. platform occupancy

2

Lift capacity

230kg

Lift capacity – extension

113kg

Drive speed – stowed

3.5km/h

Drive speed – raised

0.8km/h

Gradeability – stowed

25%

Turning Radius – Inside

0m

Turning Radius – Outside

2.40m

Features
  • Retractable Table:The platform can be extended forward by 90 cm, expanding the working range to handle special processing and operational requirements.
  • Intelligent Control System:Integrated with a control handle, horn button, and turtle speed switch, the system allows easy lifting and platform movement, providing smooth and simple operation for the user.
  • Tilt Protection System:An automatic alarm system prevents the lift from operating when unsafe conditions are detected. It protects the safety of the operator and displays fault codes for quick diagnostics.
  • Pit Protection System:When the lift encounters uneven or bumpy ground, the system adjusts lifting and movement to ensure stability. It also displays fault codes for monitoring safety and operation.
  • Explosion-Proof System:A built-in explosion-proof system prevents the platform from suddenly falling due to an oil pipe burst, providing added protection for workers at elevated heights.
  • Self-Propelled Functionality:The ability to move the platform while elevated increases efficiency, allowing workers to reposition the lift without lowering it.
  • Quiet and Emission-Free Operation: Electric power ensures the lift operates quietly with zero emissions, making it suitable for indoor environments, especially in sensitive areas like clean rooms and factories.

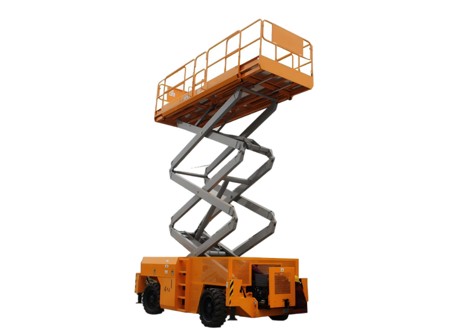

self-propelled electric scissor lift Details
