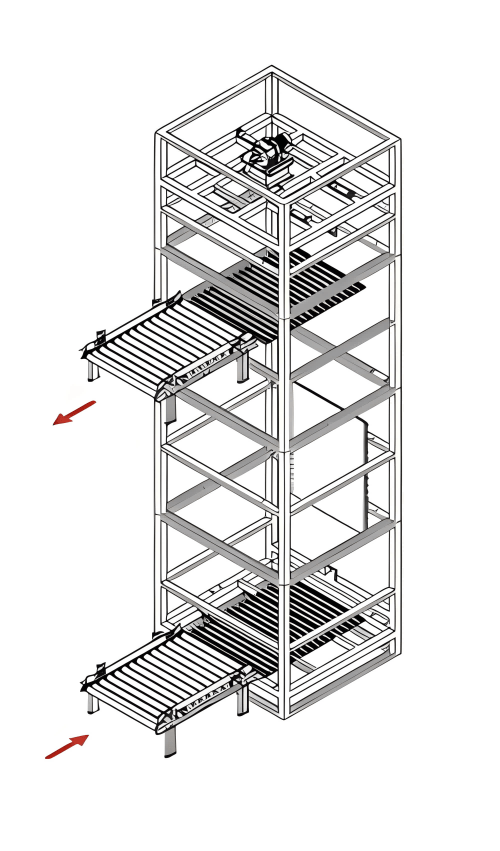

VRC| 4-post Mechanical Vertical Lift

Introducing our 4-post Vertical Reciprocating Conveyor (VRC), a heavy-duty vertical lift capable of effortlessly handling loads up to 50,000 pounds and beyond. Ideal for high-speed, high-cycle environments, this customizable solution is perfect for lifting multiple pallets, oversized materials, large carts, or heavy machinery between multiple levels, both indoors and outdoors. With its robust construction and heavy-duty roller chains, the 4-post VRC ensures reliable performance tailored to your specific needs.

Specification

Model	4-post Mechanical Vertical Lift
Lifting Capacity	50,000 lbs to 200,000 lbs (Customized)
Lift Speed	Standard travel speed is 20 fpm. Higher speeds available.
Load/Unload Patterns	“C”, “Z”, 90-degree or pass-through pattern
Levels	1 to 6 stops (Customized)
Power Supply	230V/3P or 460V/3P
Application	Moving heavy boxes, cargo, and pallets from one level to another.

Features

Safe and Efficient Handling: Gently manages medium to very large items with safety and efficiency at the forefront.
Versatile Configurations: Available in C, Z, 90-degree, and pass-through configurations to suit various operational needs.
Chemically Clean and Quiet: All-mechanical design ensures cleanliness and quiet operation, enhancing workplace comfort.
Heavy-Duty Construction: Carriage lifted and lowered by robust roller chains attached to a mechanical lifting mechanism atop 6″ guide columns.
Reliability and Longevity: Quality construction ensures reliability and long-term performance, providing peace of mind.
Safety Assurance: Certified safety cams prevent carriage descent in the event of chain failure, prioritizing worker and material safety.
Optional DeckLock Safety System: Provides additional security at critical upper levels, enhancing safety measures.
Customizable Finishes: Optional hot-dipped galvanized or epoxy finish available for outdoor or wash-down environments, ensuring durability.
Explosion-Proof Options: Explosion-proof components available for hazardous environments, ensuring safety compliance.
